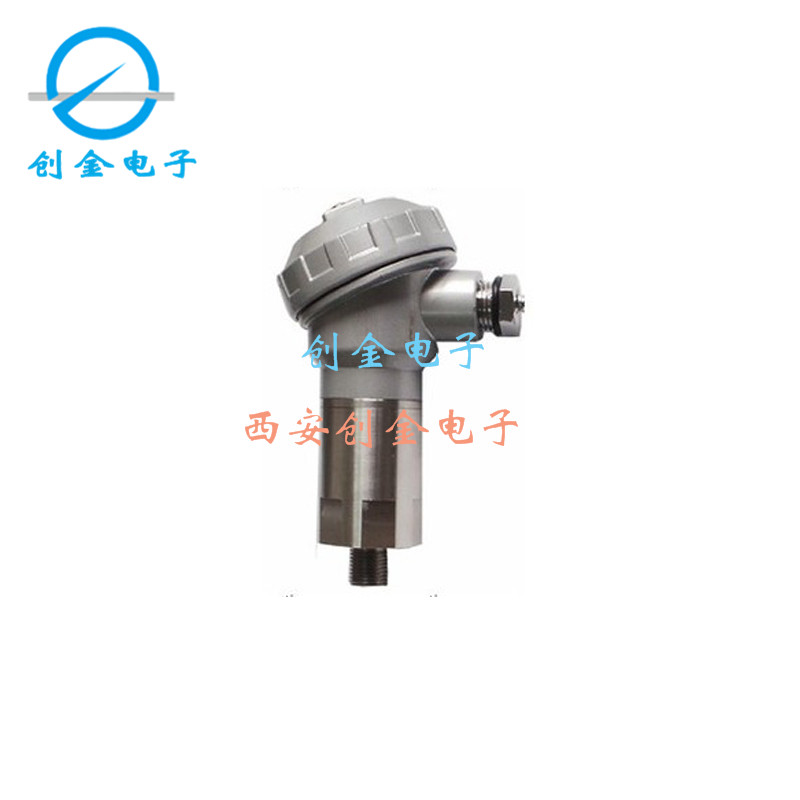

Integrated vibration speed transmitter

Description:

CJBPZ-I all-in one vibration sensor integrates combines piezoelectric acceleration sensor with precision measuring circuit that composes high precision vibration measure system. The sensor can connect with DCS, PLC or other equioment directly. It is ideal for measuring vibration of fan, motor, water pump factory equipment etc.

Features:
Wide measure range
All material is Stainless steel
Various port type
Protection Grade: IP65

Performance Parameters:

Frequency Response

5-1000Hz

Natural Frequency of Vibration

10Hz

Measurement Range

Displacement Range 0-200um, 0- 500um, 0-1000um (opitional)

Speed Range 0-10.0mm/s,0-20.0mm/s, 0-100.0mm/s (optional)

Working Voltage

24V DC

Output Currency

4-20mA

Output Impedance

500Ω

Max Acceleration

10g

Measurement Direction

vertical or horizontal

Working Ambient Temperature

-40°C to 85°C,

Relative humidity

90%

Size

φ45×80mm

Weight

450g

Thread

M10×1.5

Protection Grade

IP65
