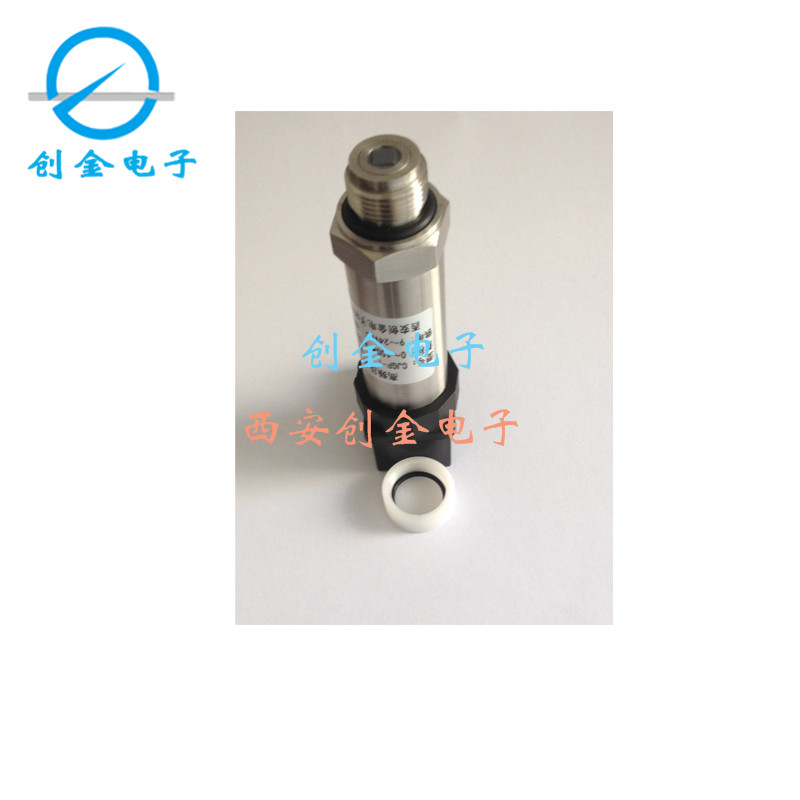

CJGP-I High Frequency Dynamic Pressure Sensor
Feature:
Response frequency is high
Reliable
Wide measure range
Technical Parameters
Pressure Type: gauge pressure/absolute pressure/sealed pressure
Pressure range: -100Kpa-60Mpa (optional)
Power supply: 15-30VDC
Signal output: 4-20mA 0-5V 1-5 50-100MV(sensor),can customize
Frequency Response Range: 0-500KHz
Nature frequency: 0-1MHz(sensor)
Accuracy: ±0.1%FS ±0.25%FS ±0.5%FS
Long term Stability (1 Year): <=0.2%FS , 0.25%FS(MAX)
Working Temperature: -20℃~80℃
Pressure connection: M20x1.5
Accuracy: ±0.1%FS ±0.25%FS ±0.5%FS
Anti- explosion Grade: ExiallBT6
Measure media: Gas, water, oil or other media can be compated with stainless steal 1Cr18Ni9Ti
