Description:

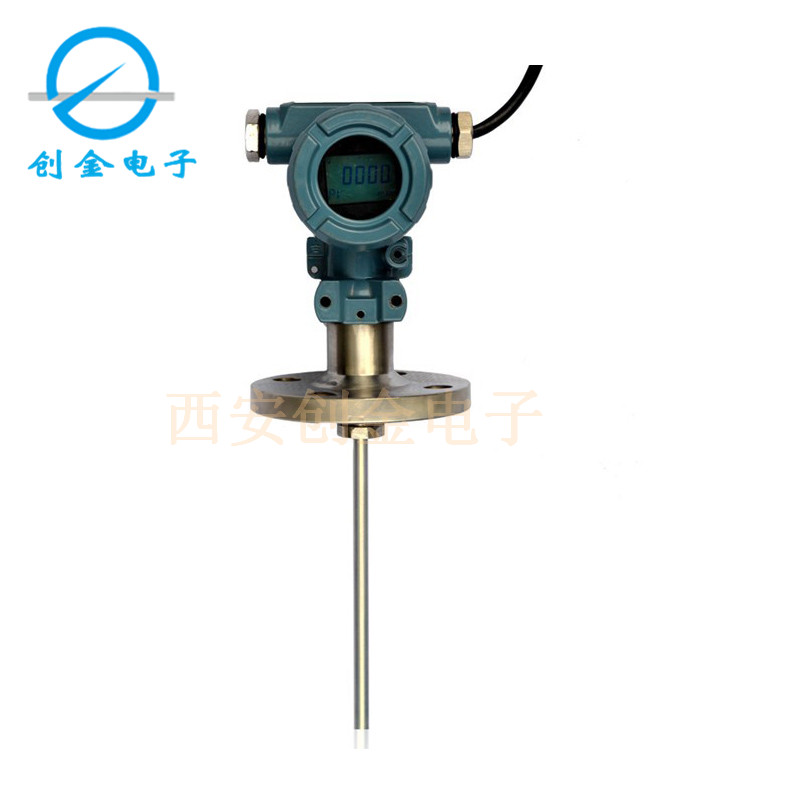

The intelligent capacitive fluid level gauge in CJBHZ series is the new generation high-tech fluid level gauge developed by out company independently according to market demand, its practicability and progressiveness have been get recommended by those chemical industrial enterprises gradually. Such series fluid level gauge are partially adopting the new generation microcomputer processing technology, to convert the sensor signal into digital signal, by making the temperature, linear compensation through MCU and the functional setting in series, it can be used for the fluid (substance) level measurement on the detection of fluid, oil and solid materials, and without moveable parts. It shall not be affected by the water vapor, dusts or condensation, has the advantages as stability and reliability for long term operation, high sensitivity, quite good linearity, high temperature/ pressure resistance.
Features:
Full stainless steel sealed construction; It has the strong practicability with key configuration and one-key correction, calibration at any two points
By using the digital software filter technique, it shall not be affected by the gas amount and fluid level fluctuation
The intelligent capacitive fluid level gauge can work under the voltage from 18 -24V generally
By adopting the anti-interference and error correction technologies with software and hardware
It has the high accuracy and strong general performance capacity,
Application:
It can be widely used in various fields such as petroleum, chemical industry, metallurgy, electricity, papermaking, pharmacy etc.
Main Performance Index :
Main performance index
Measuring range: optional within 300~5000mm range
Working pressure ：-0.1MPa~4.0MPa；
Working temperature: bar-type ：-70°C~300°C；
Probe diameter：¢8mm，¢10mm，¢16mm，¢22mm，special requests please specify before ordering.
Material for detection probe：PTFE；
Material for fluid receiving: stainless steel
Output signal: 4-20mA DC, 4-20mA overlapped with HART protocol；
Long term stability：≤0.2%FS/年 year ；
Accuracy grade ：0.5% FS;
Mounting mode:
1.Screw thread mounting
2.Flange mounting
3.Special requirements please specify before ordering
Reminders when choose models
1. Please pay attention that the media should be compatible with the contacted parts;
2. Two kinds of cable are optional, polyurethane and polyethylene. The default is polyethylene. Polyurethane
cable is more flexible and endurable; it can be selected due to the requirement;
3. When the product is used in thunder storm area, we suggest the user to use protection device to protect
the product and power grounding reliably;
4. For special requirement, please feel free to contact us
