Description:
CJRD series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Features:
Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
Serious dust environment on the high level meter work has little effect.
A shorter wavelength, the reflection of solid surface inclination is better.
Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference002E
The measuring range is large. A good measuring result will be got in the measuring process.
High signal-to-noise ratio, the level fluctuation state can obtain better performance.
High frequency, measurement of solid and low dielectric constant of the best choice.

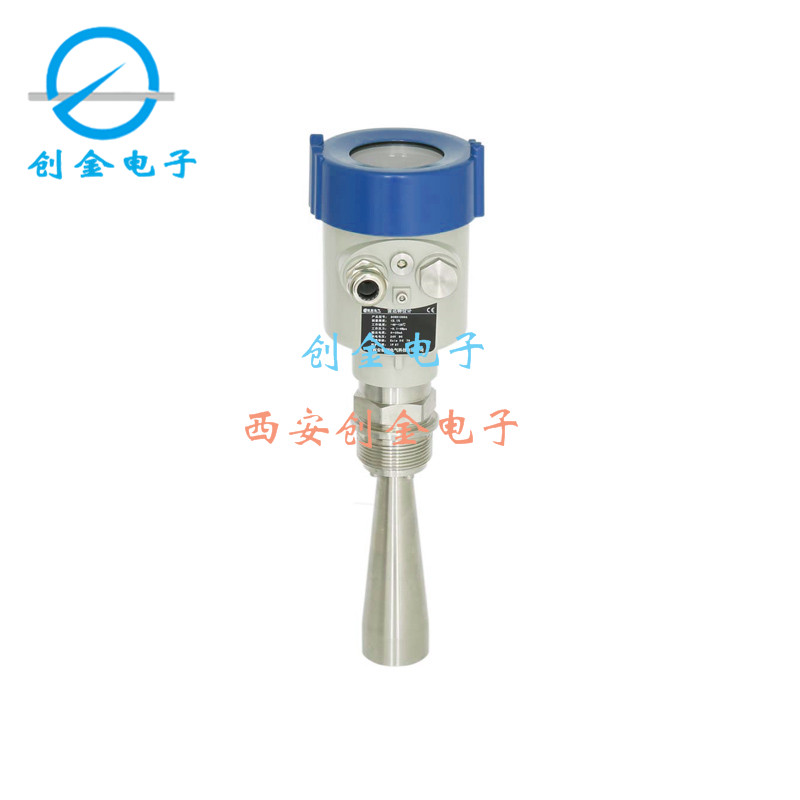

Model: CJRD-II
Application: slightly corrosive liquids （High temperature and pressure）
Measuring Range: 0-30 meters
Process Connection: Thread, Flange
Medium Temperature: -40℃ ~ 250℃
Process Pressure: -0.1~4.0 MPa
Accuracy: ± 3mm
Protection Grade: IP67
Frequency Range: 26GHz
Signal Output: 4~20mA/HART (Two-wire / Four)
RS485/ Modbus
Explosion-proof Grade: ExiaIIC T6 Ga
Display / Keyboard: Liquid crystal display LCD
